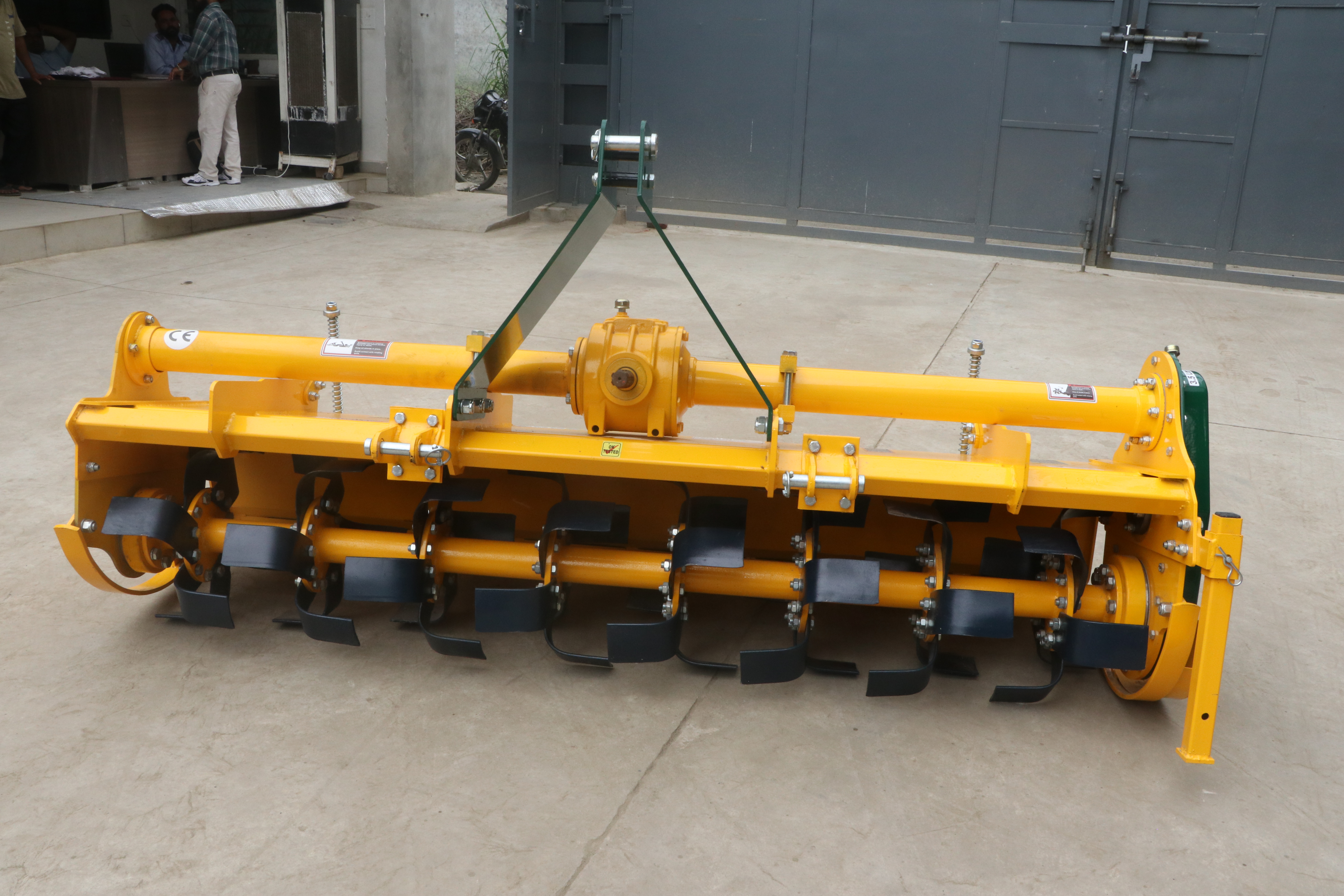

Alfa Series Gamma Rotary Tiller
In Stock
A Rotary Tiller is a powerful agricultural implement designed to till and prepare soil for planting. It is tractor-mounted and PTO operated, making it suitable for various farming applications.
Key FeaturesROTAVATOR SPECIFICATION (ALOTRY - GAMA SERIES)
| SR. | SIZE IN FT. | 5.5 FT | 6 FT | 7 FT |
|---|---|---|---|---|
| 1 | Overall Dimension | 720x800x1780 | 720x800x2000 | 720x800x2248 |
| 2 | Rotor Shaft Size | 1592 | 1810 | 2062 |
| 3 | Drive Type | Gear Drive | Gear Drive | Gear Drive |
| 4 | Lateral Gear | 20x35x28 | 20x35x28 | 20x35x28 |
| 5 | Gear Box Type | Multi-Speed | Multi-Speed | Multi-Speed |
| 6 | Crown Pinion | 11x22 | 11x22 | 11x22 |
| 7 | No. of Splines of CP | 6x14 | 6x14 | 6x14 |
| 8 | Reduction Gear | 17-18/16-19 | 17-18/16-19 | 17-18/16-19 |
| 9 | No. of Splines (TR Shaft) | 8 | 8 | 8 |
| 10 | Body Model | Gama | Gama | Gama |
| 11 | Rotor Pipe Dia | 90 MM | 90 MM | 90 MM |
| 12 | No. of Blades | 36/42/48 | 42/48/54 | 48/54/60 |
| 13 | Blade Type | L Type 14x46 | L Type 14x46 | L Type 14x46 |
| 14 | Blade Thickness | 7 MM | 7 MM | 7 MM |
| 15 | No. of Flanges | 06 Nos | 07 Nos | 08 Nos |
| 16 | Flange Thickness | 12 MM | 12 MM | 12 MM |
| 17 | Side Plates 3 Bore | 10 MM | 10 MM | 10 MM |
| 18 | Side Plates 1 Bore | 8 MM | 8 MM | 8 MM |
| 19 | Gear SPT Pipe | Full Pipe | Full Pipe | Full Pipe |
| 20 | Frame Thickness | 4 MM | 4 MM | 4 MM |
| 21 | Deflector Thickness | 3 MM | 3 MM | 3 MM |
| 22 | Hitch Box Type | CAT-2 | CAT-2 | CAT-2 |
| 23 | P.T.O Input in RPM | 540 | 540 | 540 |
| 24 | Rotor RPM | 180-210 | 180-210 | 180-210 |
| 25 | Working Depth | 160-200 MM | 160-200 MM | 160-200 MM |
| 26 | Spring Assembly | 2 Nos | 2 or 4 Nos (opt) | 4 Nos |
